ACB Encapsulated
Powder Coating Spray Booth
ACB Encapsulated Spray Booth- patented design
A New Era
Of
High Quality Powder Coating
Ramseier Koatings Technologies has revolutionized the concept of automatic powder coating with its ACB Encapsulated Spray Booth.

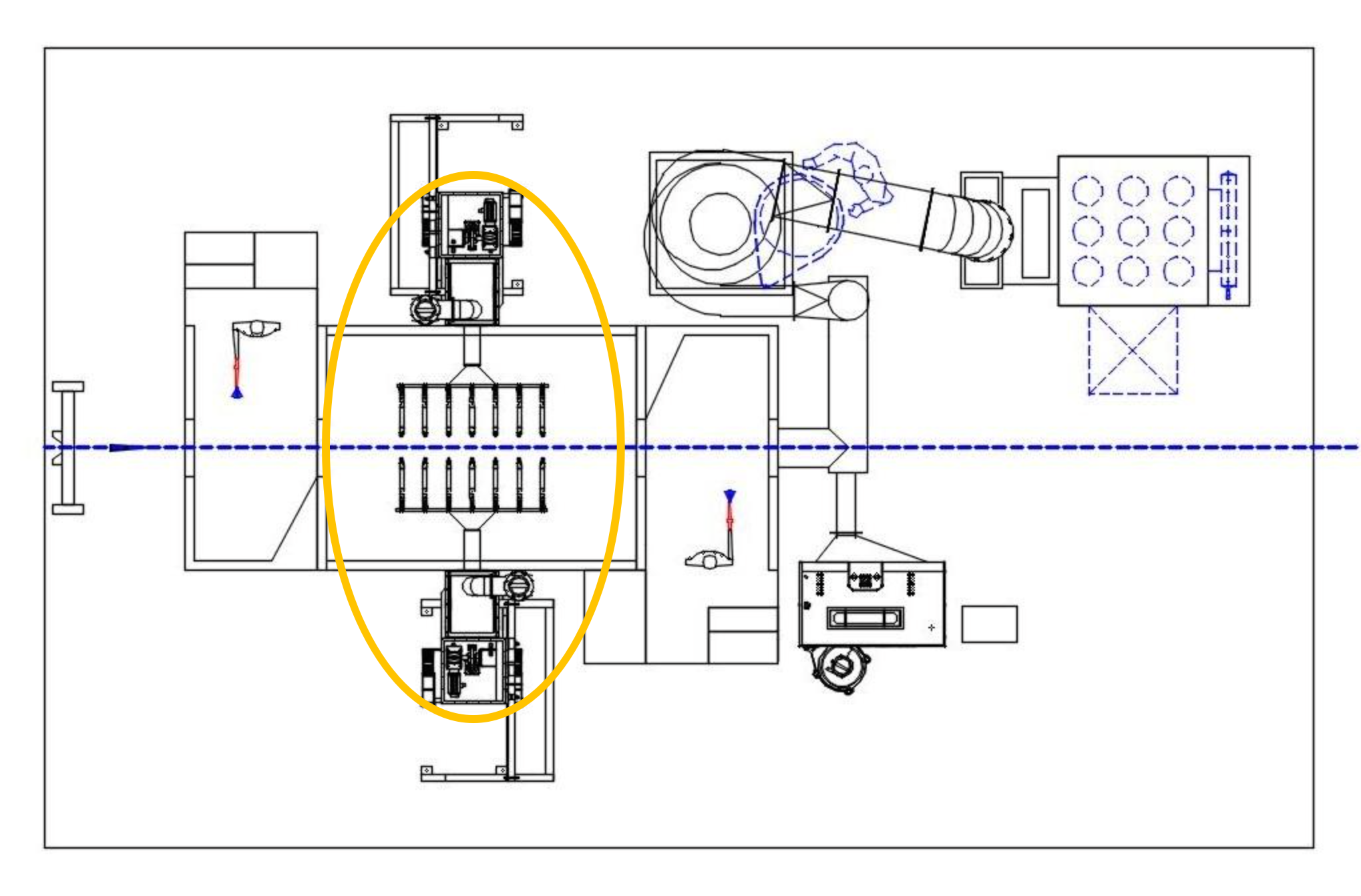

The removal of gun openings for automatic spray guns on both sides of the spray booth and the use of gentle extraction combined to create the ideal vortex cloud condition for high efficiency powder coating.
VortexKoating
VortexKoating is the solution created by Ramseier Koatings to reduce the persistent problem of "overspray" powder which has resulted in low powder transfer efficiency and high powder wastage for many powder coaters for many years.
This novel concept is to create a powder cloud in the middle of the spray booth which forms into a vortex, such that the powder particles are suspended in this area for a prolong period. The benefits are that, not only
will the amount of recycled powder be reduced but powder transfer efficiency is enhanced.
This latest advancement of airflow management, has significantly improved the efficiency and long-term economic benefits of the entire powder coating process.
“VortexKoating" can:
- Reduce powder wastage cause by powder overspray
- Maximise the powder charging time
- Maximise the powder contact time with the work pieces
- Maximise the Powder Transfer Efficiency
- Improve the general quality of finish.
Typical State of Overspray Powder
VS
VortexKoating- Creation of the Vortex Powder Cloud
Typical State of Overspray Powder
VortexKoating- Creation of the Vortex Powder Cloud
ACB Encapsulated Spray Booth- Benefits
Outstanding
powder transfer
efficiency
powder transfer
efficiency
New benchmark
for powder
utilization
for powder
utilization
Greater possibility
for fully automatic
operations
for fully automatic
operations
Superior coating
quality
quality
Potential of higher
productivity and
profitability
productivity and
profitability
Higher state of
operation
cleanliness
operation
cleanliness
ACB Encapsulated Spray Booth- Technical highlights
ACB Encapsulated Spray Booth System- Main Technical Features
Wall constructed with
sandwich-structured
flame-retardant
grade PVC boards
sandwich-structured
flame-retardant
grade PVC boards
Powder concentration
meets ATEX safety
standard
meets ATEX safety
standard
Cyclone recovery
efficiency: 96–98%
efficiency: 96–98%
Consistent and energy
efficient extraction
control by smart
controller
efficient extraction
control by smart
controller

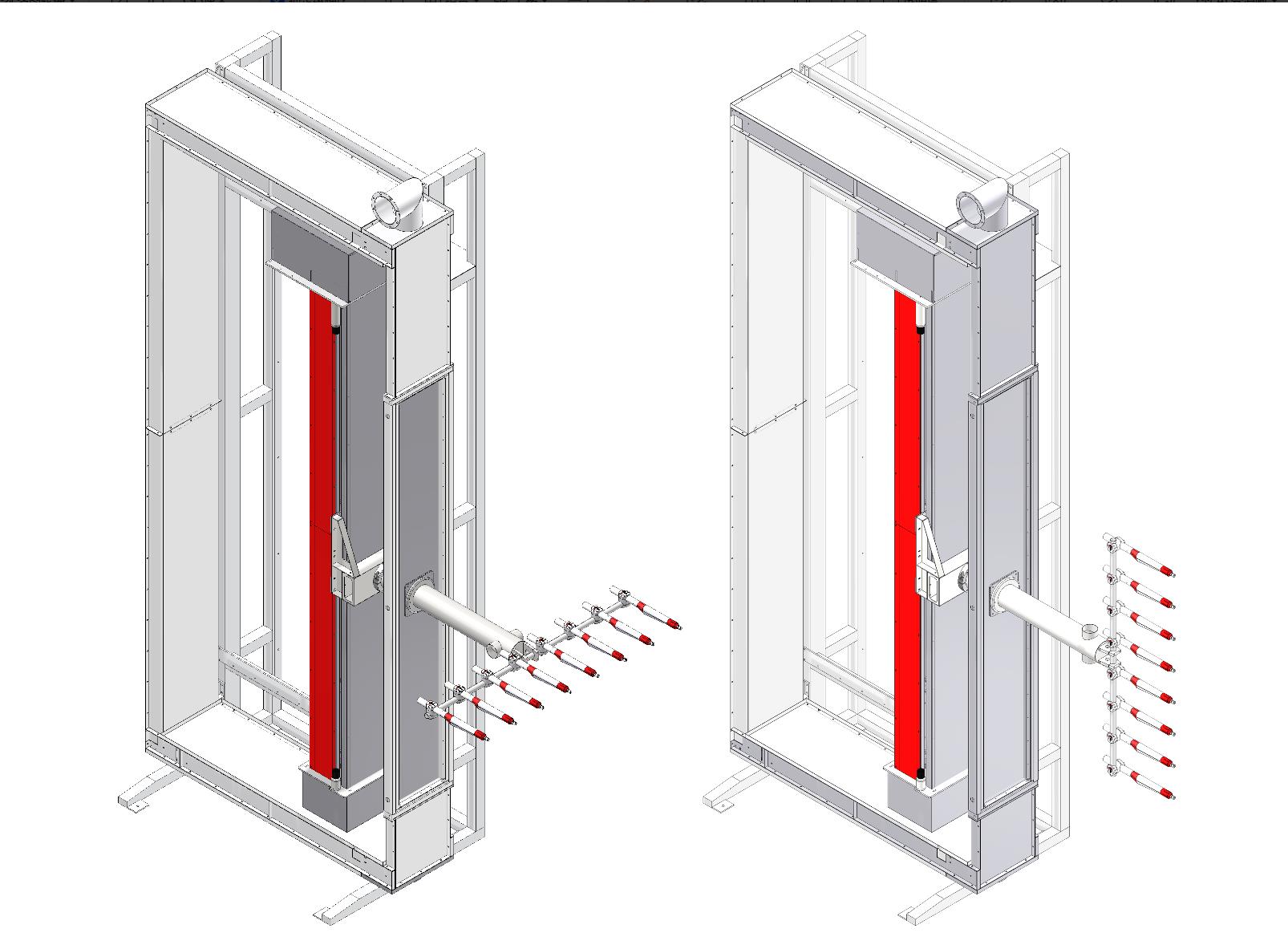

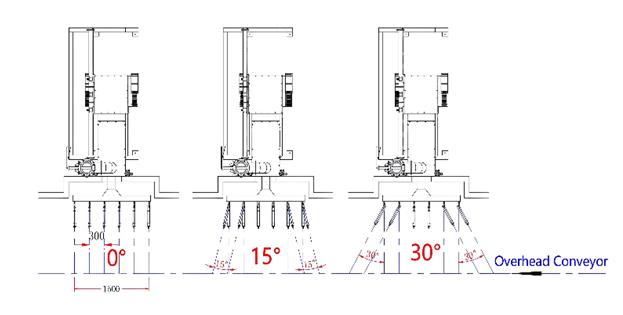

Unique adjustable
angle and layout
arrangement of the
automatic spray guns
angle and layout
arrangement of the
automatic spray guns
